al₂o₃ Oxidation: What is oxidation？
As a crucial industrial material of semiconductor business, influenced by particle size, ambient temperature, carbon deposits, and operating humidity. When exposure in air at temperature of 1200°, linear density will gain on sintered aluminum nitride [1]. However, protective ceramic coating will not form when oxidation states temperature begin with 650°. The purpose of alumina depends on its tensile strength, heat resistance adhesive, supportive scratch test, optical clarity, and electrical insulators properties[2]. Typically, in order to decrease particles or dust from other human activities, the coating could prevent surface and inner parts erosion, via alumina ceramic coating was spray on ceramic substrates to protect the layer. In this paper, what is oxidation in the semiconductor industry and its challenge and future prospect will be discuss.
Oxidation Behavior of al₂o₃
The oxidation of aluminum oxide (Al₂O₃) proceeds through distinct stages:
Initial Stage (≤ 600 ℃)
At the early stage, oxidation occurs at a relatively low rate. An amorphous oxide scale forms on the aluminum surface, providing effective protection and maintaining the integrity of the underlying metal. Within this temperature limit (up to ~600 ℃), the amorphous oxide layer acts as a reliable diffusion barrier, thereby suppressing further oxidation.Crystallization Stage (~600 ℃)
As the temperature rises toward 600 ℃, the amorphous oxide begins to crystallize. This structural transformation accelerates the oxidation rate of the protective shell, making the oxide scale less uniform.High-Temperature Stage (~700 ℃ and above)
Beyond ~700 ℃, diffusion pathways within the oxide scale are disrupted. This breakdown leads to a sudden decrease in the oxidation rate, altering the overall oxidation dynamics.
Challenges in Oxidation and Corrosion
Potential issues frequently arise in high-temperature systems, particularly under corrosive conditions. Even in single-gas atmospheres, identifying the oxides and understanding their growth mechanisms can be challenging due to the development of multi-layer oxide structures. In environments with multiple gaseous species or added dopants, the scaling process becomes even more complex, as interactions among species significantly influence oxide formation.
Engineering Approaches to Controlled Oxidation
To mitigate these challenges and achieve reliable oxide films, several engineered oxidation techniques are employed:
Thermal oxidation: A conventional method for producing uniform oxide layers under controlled heating.
Anodization (AAO): Creates nanoporous alumina structures with enhanced surface area and controllable morphology.
Atomic Layer Deposition (ALD): Provides precise control over thin-film thickness at the atomic scale, enabling conformal coatings with excellent uniformity.
High-k Dielectrics in Semiconductor Devices
Advantages over Conventional Low-k Materials
The integration of high-k dielectric materials into semiconductor devices provides significant advantages, including reduced voltage drop and enhanced heat capacity during processing. In contrast, conventional low-k materials such as SiO₂ and Si₃N₄ often limit scaling potential and increase leakage current, owing to their relatively low dielectric constant and thinner effective oxide thickness (EOT) [5].
Challenges and Reliability Considerations
Despite these benefits, the adoption of high-k systems introduces challenges. The intrinsic limitations of SiO₂, particularly in terms of interfacial layer quality and long-term reliability, must be carefully considered.
Engineering Solutions
To address these challenges, high-k dielectrics are typically engineered in a layered configuration, where an ultrathin interfacial oxide is combined with a high-k overlayer. This architecture balances interface stability with improved capacitance and breakdown characteristics, ensuring the dielectric stack can meet the stringent demands of advanced semiconductor nodes.
Alumina (Al₂O₃) is generally regarded as a medium high-k dielectric material, with a dielectric constant higher than SiO₂ but lower than HfO₂ or ZrO₂.
Within these films, diverse microstructural features and the incorporation of elements such as Al or N play critical roles in reducing defect density, suppressing charge trapping, and enhancing overall device stability.
Advantages used in Al₂O₃ Oxidation

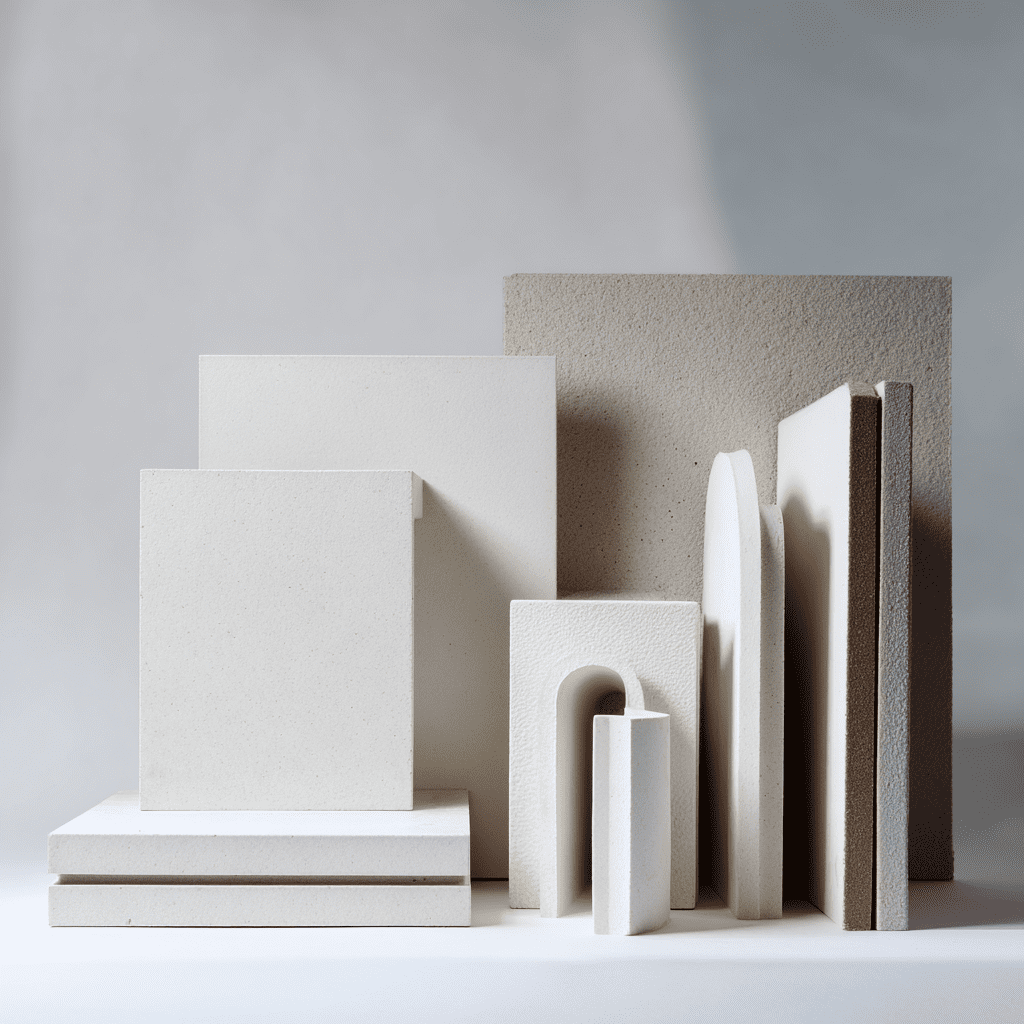

Alumina is one of advanced ceramic material in applications, with comparative advantages and business value. About alumina properties, it appears features of high heat dissipation and tensile strength. However, data from elevated temperature are not easy to access. Thus, sintering can be done in low temperature, cause temperature overload could lead to excess grain growth.
properties of alumina
High purity alumina temperature exceed 1700℃ in sintering process [7]. With increasing sintering temperature, the material exhibited a progressive loss in hardness, indicating a corresponding rise in brittleness. Meanwhile, it has proved that with the temperature rise,the physical properties of alumina density has improved a lot [6]. Alumina display high potential of corrosion resistance and hardness materials come from it chemical inertness. When adopting rapid thermal firing with limit budget, Al2O3 single layers appear excellent stability.
By contrast, a prolonged firing process can reduce the passivation quality due to illumination or annealing recovery effects. In addition, the formation of surface species such as copper oxide during high-temperature processing may further influence interfacial stability. However, very thin Al₂O₃ layers (≤10 nm) still maintain high thermal stability under all firing conditions when covered with a PECVD-SiNₓ capping layer. Consequently, Al₂O₃/SiNₓ stacks are highly suitable for integration into industrial silicon solar cells.
Conclusion
In summary, alumina (Al₂O₃) demonstrates excellent chemical inertness, high hardness, and strong potential for use in applications requiring long-term thermal and environmental stability. making it highly relevant for advanced ceramic packaging applications such as Active Metal Brazing (AMB) and Direct Bonded Copper (DBC) substrates. Our analysis shows that the firing profile plays a decisive role in determining its passivation performance: rapid thermal annealing (RTA) with a limited thermal budget preserves the stability of Al₂O₃ single layers, whereas prolonged firing reduces passivation quality due to defect generation and interfacial degradation. Nevertheless, these losses can be partially recovered by annealing or light-induced treatments, which help restore passivation effectiveness. Importantly, very thin Al₂O₃ layers (≤10 nm) exhibit superior thermal robustness under all firing conditions when combined with a PECVD-SiNₓ capping layer, highlighting the synergistic benefits of multilayer stack designs.
To better frame these results, it is worth recalling what oxidation is: a chemical process in which a material reacts with oxygen, often forming an oxide layer on its surface. In semiconductors and ceramics, this oxide layer can either serve as a protective barrier or, under high-temperature conditions, degrade material properties through structural changes and defect formation.
Taken together, these findings underline the suitability of Al₂O₃/SiNₓ stacks for integration into industrial silicon solar cells, where they provide an optimal balance of thermal stability, surface passivation, and manufacturing compatibility. This work therefore reinforces alumina’s role as a key material for advancing the performance and reliability of next-generation photovoltaic devices.
